FGIS 904 Laboratory Scale Test

---

Overview

FGIS-904
Form Example
Instructions

---

Sheet 1: FGIS-904

U.S. DEPARTMENT OF AGRICULTURE

FEDERAL GRAIN INSPECTION SERVICE

LABORATORY SCALE TEST

Date

Field Office

Agency

Location

Scale make, model, and serial No.:

Capacity x

division size (e):

Check mark the Class or Type of use, not both. A marked scale has a roman numeral II or III on the front or the i.d. plate. A marked scale is tested using either

Class II or Class III tolerances, regardless of what it is used for.

Class II

Class II

Class III

Class III

Nunber of Divisions

Tol.

Nunber of Divisions

Tol.

0-5,000

1d

0-500

1d

5,001-20,000

2d

501-2,000

2d

20,001+

3d

2,001-4,000

3d

4,001+

5d

An unmarked scale is tested according to each type of its uses: Precision (and separations from work portions ≤ 100 g), Moisture (and separations from

work portions > 100 g), and General (and separations from work portions > 500 g).

Type

Type

d

Test Loads Required

Tol.

Precision, etc.

0.01 g

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 50, 100 g

0.02 g

Moisture, etc.

0.1

above plus 150, 200, 250, 300, 400 g

0.2

General, etc.

1

above plus 500, 600, 700, 1000, 1500 g

1

1. Class F weights used in this exam were last tested on this date (maximum 3 years)

2. Zero balance the scale before the sensitivity test, shift test and increasing load test.

3. Sensitivity Mechanical scales only. At zero, add weight equal to one scale division. The scale indicator should move to the top

of the trig loop (or readings should change by at least one division). Repeat the test at the scale's maximum test load

4. Shift Test Place weight of approx. 1/2 of the maximum test load (applied during the increasing load test) halfway

between the center and the edge of each quadrant. Apply the basic tolerance for the type of scale and test load.

Quadrant 1

Quadrant 2

Quadrant 3

Quadrant 4

Reading

5. Increasing Load For marked scales, test at each load from 1 g to 1500 g (or max. capacity) as indicated

6. Decreasing Load.

below. For unmarked scales test at each load indicated above, for each of the scale's uses. Evaluate the scale

Perform this test while

according to the tolerances shown above for the type of scale tested.

removing weights from the .

increasing load test

Test Load (g)

Indication

Test Load (g)

Indication

Test Load (g)

Indication

Test Load

Test Load (g)

Test Load (g)

Indication

1

7

100

500

400

2

8

150

600

200

3

9

200

700

50

4

10

250

1000

5

20

300

1500

Test Load (g)

Indication

6

50

400

0

7. Balance Change. Record the maximum no-load indication during the above tests. Tolerance is 1d.

Approved Disapproved

Tested by:

Form FGIS-904 (3/25) Previous editions are obsolete. Expires 03/28

---

Sheet 2: Form Example

---

Sheet 3: Instructions

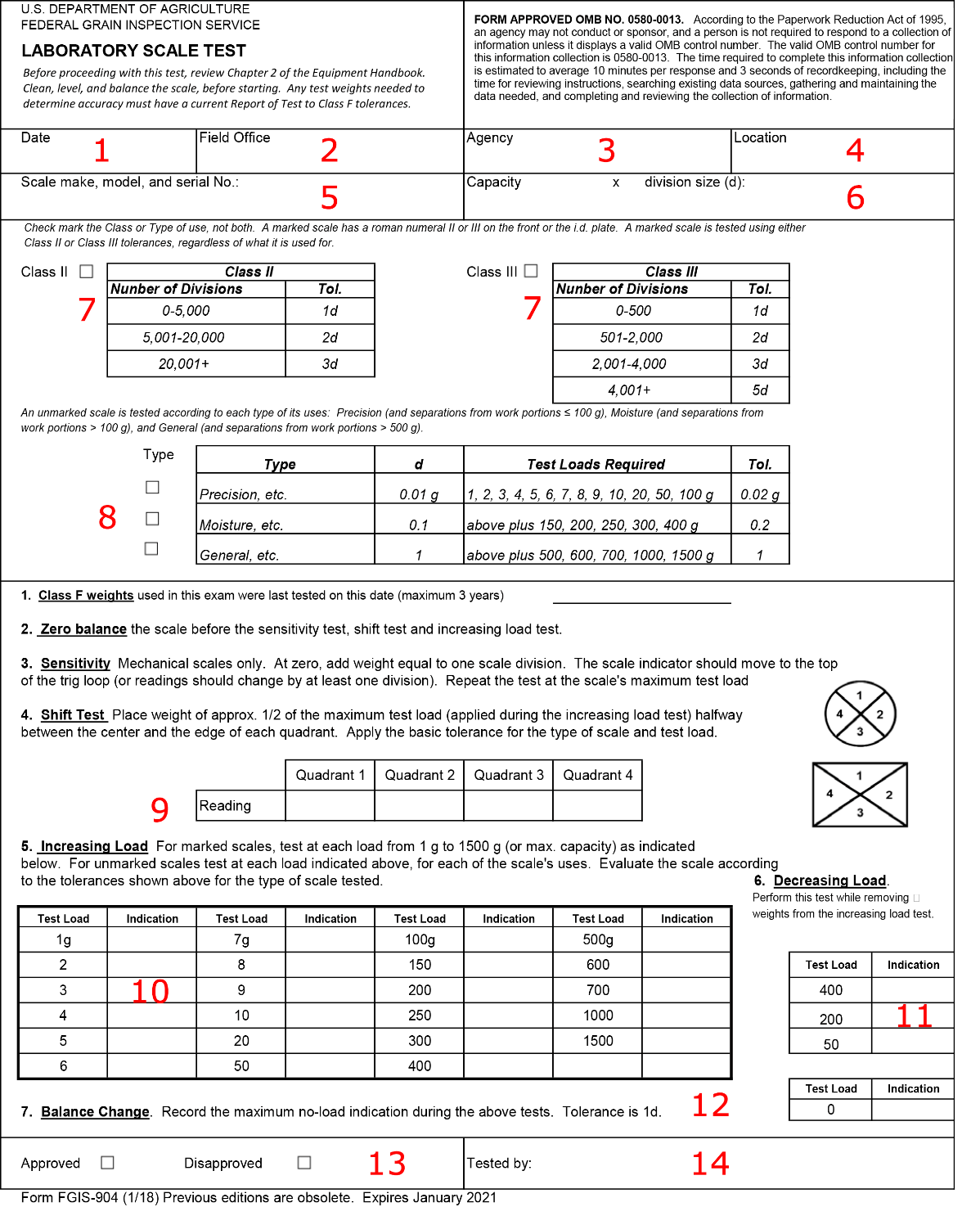

Instructins for Completeing FGIS-904

1. Date the test was performed.

2. Field office that performed or supervised the performance of the test.

3. Agency that performed the test, when applicable.

4. Location of the field office or agency that performed the test.

5. Name of the manufacturer, model number, and scale serial number.

6. Maximum rated scale capacity and the minimum scale division size.

7. Indicate with a check mark if the scale is marked with an accuracy class, such as Class II.

8. Indicate with one or more check marks the application of the unmarked scale; precision,

moisture, or general.

9. Record scale indications from the shift test.

10. Increasing Load Test - Test marked scales at each test load indicated up to 1,500 g or

capacity, whichever is less. Test unmarked scales at each test load shown in the table checked off in

item 8, above.

11. Decreasing Load Test - Test marked scales at each load indicated, as appropriate. Test

unmarked scales at approximately ½ the maximum test load used in the increasing load test.

If the scale is mechanical, do not perform the test or complete this portion.

12. Balance Change - Scale indication with zero load at completion of testing must be £ 1 division.

13.    Has the scale met all requirements of the pre-test inspection as well as each (all) of the

accuracy tests?

14. Name of the person who performed this test.

Return Form To:

FGIS, Field Management Division

FAX Number (202) 720-1015

Retain in official file.

Any Questions Call: Local FGIS field Office.
